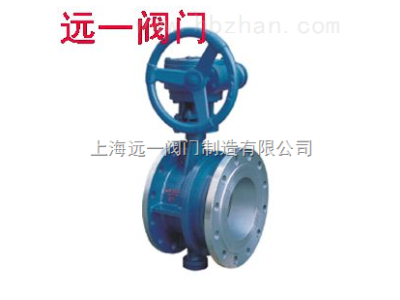

产品名称：伸缩蝶阀，伸缩法兰蝶阀，蜗轮传动伸缩蝶阀，手动，电动
产品型号：SD343H-10C/SD343H-16C、SD341X-10Q/SD341X-16Q/SD341X-10C/SD341X-16C/P/R/RL
产品压力：6、10、16
连接尺寸
|
DN |
H1 |
H2 |
H3 |
zui大长度Lmax |
zui小长度Lmin |
设计长度L |
D1 |
n-d-m |
质量kg |
||||||||
|
mm |
in |
0.6MPa |
1.0MPa |
1.6MPa |
0.6MPa |
1.0MPa |
1.6MPa |
||||||||||
|
50 |
2 |
309 |
112 |
117 |
164 |
138 |
151 |
110 |
125 |
125 |
4-14 |
M12 |
4-18 |
M16 |
4-19 |
16 |
14.3 |
|
65 |
21/2 |
337 |
112 |
117 |
190 |
154 |
172 |
130 |
145 |
145 |
4-14 |
M12 |
4-18 |
M16 |
4-19 |
16 |
16.8 |
|
80 |
3 |
347 |
135 |
117 |
195 |
163 |
177 |
150 |
160 |
160 |
4-18 |
M16 |
8-18 |
M16 |
8-19 |
16 |
18.7 |
|
100 |
4 |
373 |
142 |
117 |
227 |
184 |
206 |
170 |
180 |
180 |
4-18 |
M16 |
8-18 |
M16 |
8-19 |
16 |
26.2 |
|
125 |
5 |
405 |
160 |
117 |
254 |
201 |
215 |
200 |
210 |
210 |
8-18 |
M16 |
8-18 |
M16 |
8-19 |
16 |
33.6 |
|
150 |
6 |
440 |
180 |
117 |
240 |
195 |
225 |
225 |
240 |
240 |
8-18 |
M16 |
8-22 |
M20 |
8-23 |
20 |
37.3 |
|
200 |
8 |
612 |
225 |
212 |
265 |
215 |
245 |
280 |
295 |
295 |
8-18 |
M16 |
8-22 |
M20 |
12-23 |
20 |
68.7 |
|
250 |
10 |
693 |
266 |
212 |
295 |
235 |
265 |
335 |
350 |
350 |
12-18 |
M16 |
12-22 |
M20 |
12-28 |
24 |
86.8 |
|
300 |
12 |
747 |
290 |
212 |
308 |
254 |
282 |
395 |
400 |
400 |
12-22 |
M20 |
12-22 |
M20 |
12-28 |
24 |
120 |
|
350 |
14 |
802 |
320 |
212 |
325 |
271 |
300 |
445 |
460 |
460 |
12-22 |
M20 |
16-22 |
M20 |
16-28 |
24 |
157 |
|
400 |
16 |
991 |
400 |
265 |
345 |
283 |
314 |
195 |
515 |
515 |
16-22 |
M20 |
16-26 |
M24 |
16-31 |
27 |
227 |
|
450 |
18 |
1037 |
425 |
265 |
370 |
314 |
340 |
550 |
565 |
565 |
16-22 |
M20 |
20-26 |
M24 |
20-31 |
27 |
260 |
|
500 |
20 |
1127 |
480 |
265 |
377 |
316 |
346 |
600 |
620 |
620 |
20-22 |
M20 |
20-26 |
M24 |
20-34 |
30 |
300 |
|
600 |
22 |
1377 |
520 |
380 |
446 |
388 |
417 |
705 |
725 |
725 |
20-26 |
M24 |
20-30 |
M27 |
20-37 |
33 |
540 |
|
700 |
24 |
1796 |
577 |
380 |
445 |
395 |
425 |
810 |
840 |
840 |
24-26 |
M24 |
24-30 |
M27 |
20-37 |
33 |
684 |
|
800 |
32 |
1484 |
620 |
270 |
479 |
425 |
455 |
920 |
950 |
950 |
24-30 |
M27 |
24-33 |
M30 |
24-40 |
36 |
952 |
|
900 |
36 |
1676 |
715 |
285 |
515 |
455 |
485 |
1020 |
1050 |
1050 |
24-30 |
M27 |
28-33 |
M33 |
28-40 |
36 |
1290 |
|
1000 |
40 |
1760 |
760 |
285 |
525 |
465 |
495 |
1120 |
1160 |
1160 |
28-30 |
M27 |
28-36 |
M36 |
28-43 |
39 |
1456 |
|
1200 |
48 |
2018 |
900 |
285 |
574 |
495 |
542 |
1340 |
1380 |
1380 |
32-33 |
M30 |
32-39 |
M36 |
32-49 |
45 |
2310 |
|
1400 |
56 |
2363 |
1000 |
425 |
599 |
542 |
572 |
1560 |
1590 |
1590 |
36-36 |
M33 |
36-42 |
M39 |
36-49 |
45 |
2816 |
|
1600 |
64 |
2723 |
1160 |
425 |
640 |
615 |
615 |
1760 |
1820 |
1820 |
40-36 |
M33 |
40-48 |
M45 |
40-56 |
52 |
4218 |
|
1800 |
72 |
2844 |
1247 |
425 |
725 |
695 |
695 |
1970 |
2020 |
2020 |
44-39 |
M36 |
44-48 |
M45 |
44-56 |
52 |
5650 |
|
2000 |
80 |
3127 |
1362 |
425 |
764 |
722 |
722 |
2180 |
2230 |
2230 |
48-42 |
M39 |
48-48 |
||||
